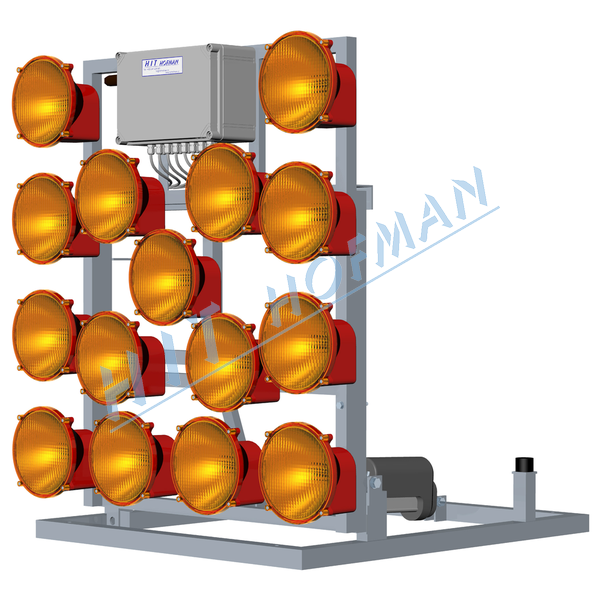

Light arrow SS15 with motor-operated lifting SD SS-2

Light arrow SS15 supplied from battery 12V/180Ah keeps flashing nonstop for up to 40 hours

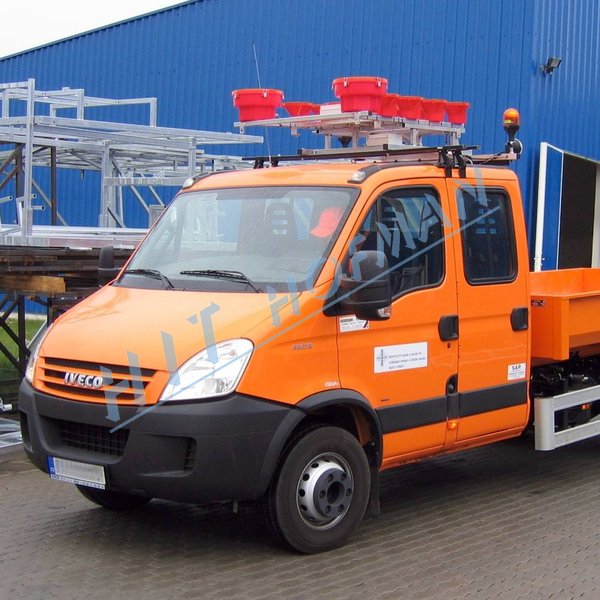

Motor-operated frame is for lifting or lowering of the light arrow using a linear actuator controlled by remote control from the driver´s cabin. Light arrow is a signalling device used for maintenance vehicles, gritters, road sweepers, marking vehicles and trailers, or it can be used for indicating road works and the direction of its drive-around. This light arrow is also described as Light arrow and cross type B, warning arrow or signalling arrow.

  • 15 halogen lamps ø200mm EN 12352 L8H
  • main advantage of the light arrow with 15 lamps is a more visible symbol of cross
  • electronics automatically reduce lamp luminous intensity at night and includes reverse polarity protection
  • moreover, the electronics protect the battery from deep discharge by disconnecting the light arrow symbols depending on the current battery status

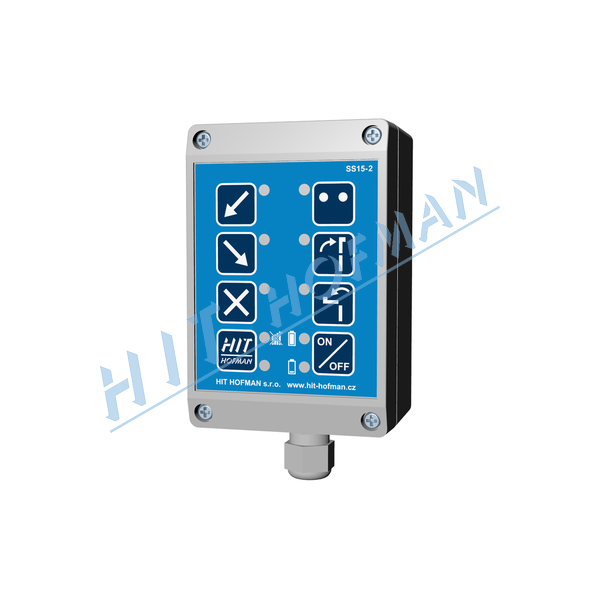

  • remote control with 15m cable for control and optical check of the function modes and displaying the position of the light arrow

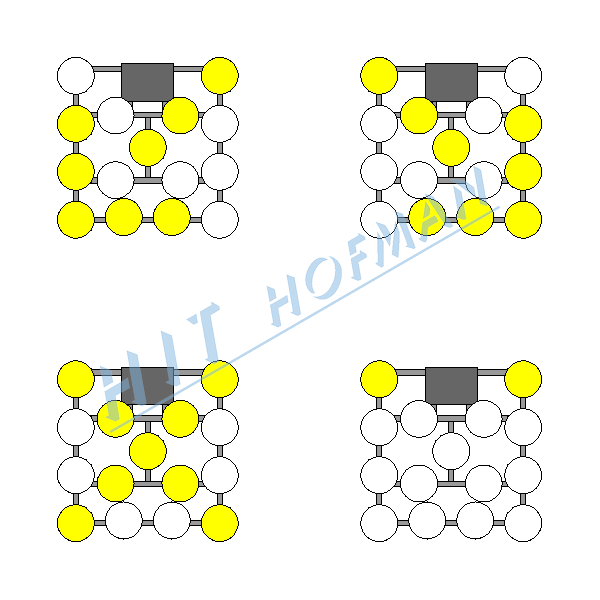

  • the light arrow has the following modes: arrow to the left, arrow to the right and cross
  • all operational information are clearly displayed on the remote control
  • 10m power supply cable to be installed on the vehicle
  • the collapsible frame with light arrow can be attached to a profile of up to (WxH) 40x30mm (roof racks)



  • the light arrow is lifted / lowered using by a robust linear actuator controlled by remote control from the driver´s cabin
  • the actuator has a bolt enabling manual lifting or lowering of the light arrow in case of failure or emergency
  • electronics protect the actuator and the frame construction against overloading using a current-limit protection
  • power supply voltage 12/24V=, average current consumption of actuator 12V=8,5A

Technical data

Power supply 12/24V=
Current consumption 12V= day 5,6A     night 3,4A
Average consumption 12V= 108Ah / 24 hours
Current consumption 24V= day 3,1A     night 1,9A
Average consumption 24V= 60Ah / 24 hours
Flashing frequency 44/min.
Dimensions (WxHxL) 980x380x1130mm
Weight 49,7kg

Products

Order no. Product name Quantity
1-140-350020 Light arrow SS15 with motor-operated lifting SD SS-2 pc. Price inquiry
