Special transport trailers with warning board

Dimensions and weight of the trailer can be designed based on your requirements

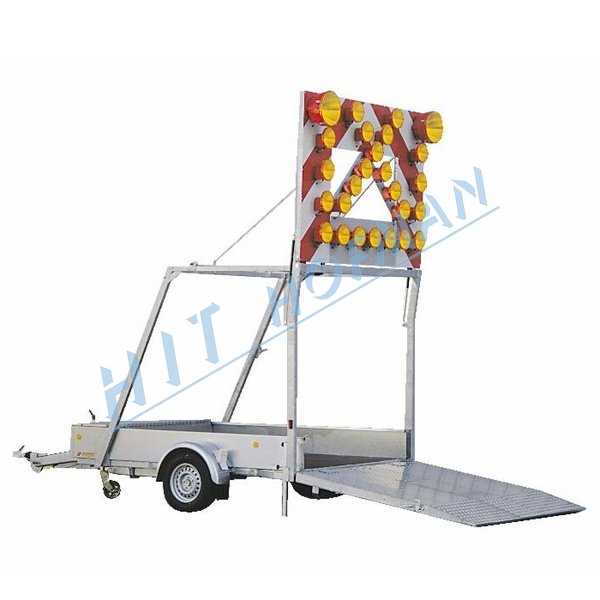

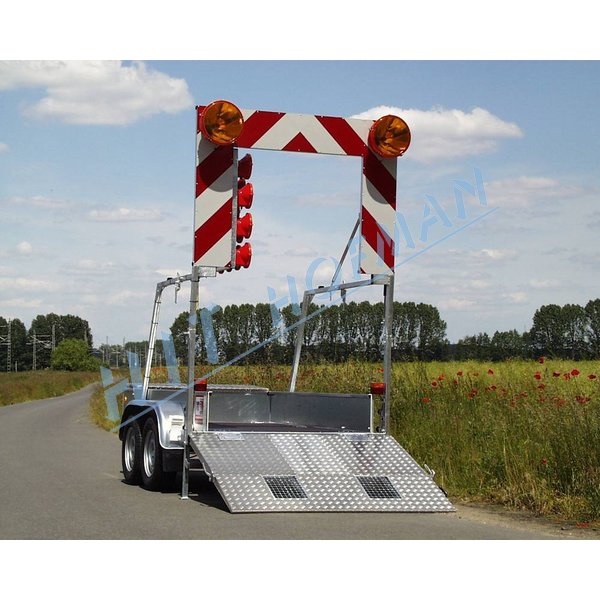

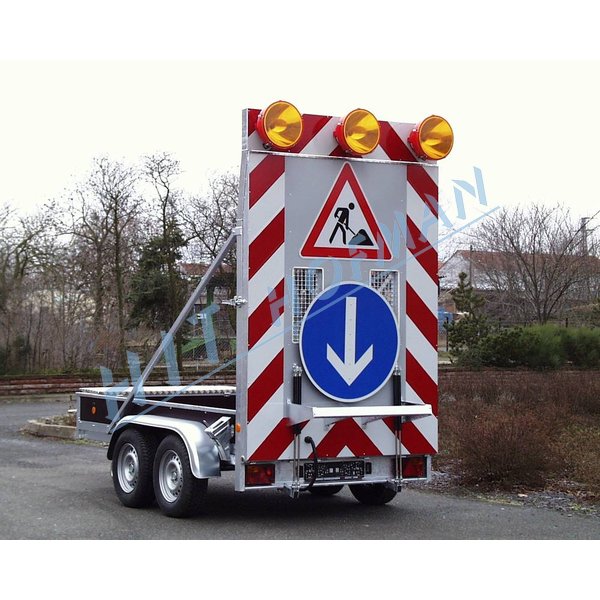

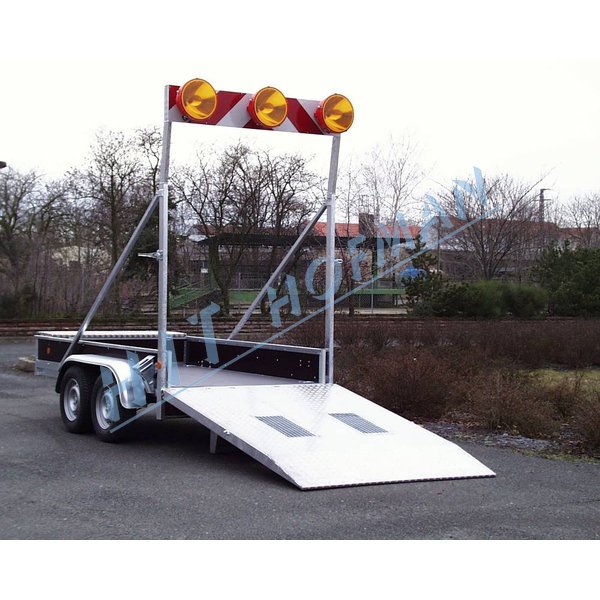

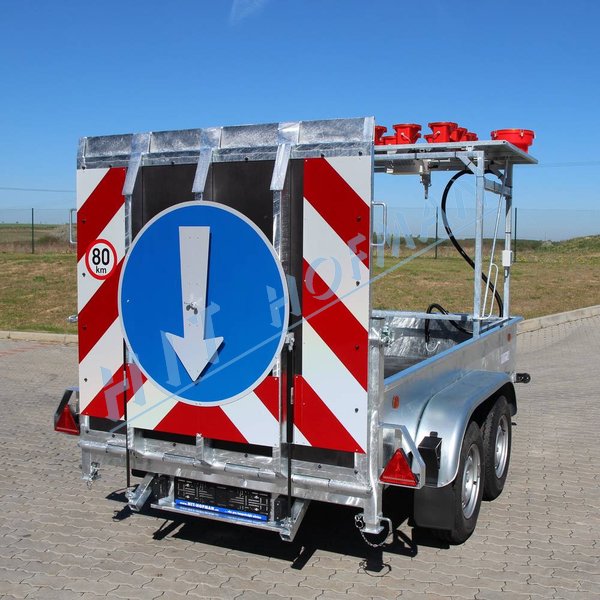

Machinery transport trailer with warning board for indicating road works and for transporting small vibratory rollers, excavators and other road work machinery. This warning trailed with flashing arrow is also described as Traffic device Z7 – Mobile road closure sign type I or II.

  • strong one or two-axle trailer with overrun device and hand brake, hot-dip galvanized
  • fixed or height adjustable overrun device with replaceable coupling device for ball ø50mm or as accessories pin DIN ø40mm or ø50mm
  • trailer LED lighting with a 13-pin plug that can be connected to the towing vehicle with 12V as well as 24V onboard voltage
  • loading area of water-resistant anti-slip plywood with side walls


  • two-part retroreflective warning board (WxH) 1700x2500mm or 2200x3600mm
  • the upper board can be lifted by a lifting rod supported by gas springs while secured against wind pressure in the operating position

Trailer variants

  • traffic signs can be modified according to national standards
  • total weight of the braked trailer can be between 1000kg and 3500kg
  • one full-sized spare wheel
  • two side supports for stability and safety while loading machinery
  • loading ramp lifted with the support of gas springs
  • loading ramp and flooring are covered by anti-slip cast rubber
