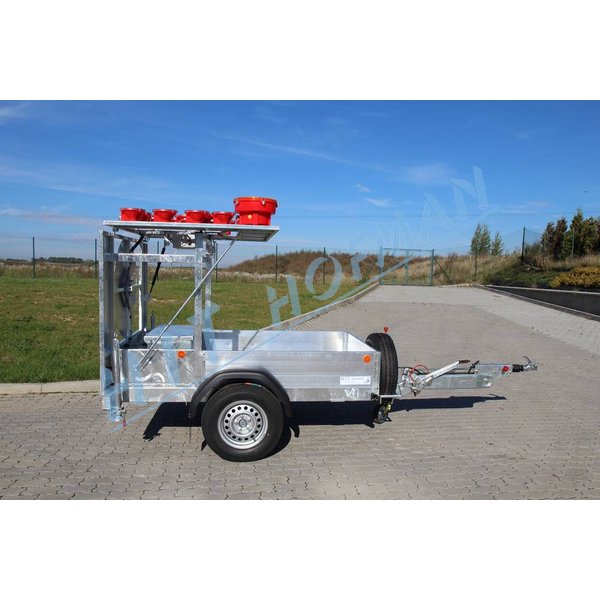

Warning trailer ZSP-5.1_01

Trailer with the light arrow SS13-L LED supplied from one battery 12V/180Ah keeps flashing non-stop for up to 6 days

Warning trailer for indicating road works and for transporting traffic signs, base plates or tools. This trailer with light arrow is also described as Traffic device Z7 – Mobile road closure sign type II.

  • strong one-axle trailer with overrun device and hand brake, hot-dip galvanized
  • height adjustable overrun device with replaceable coupling device for ball ø50mm or as accessories pin DIN ø40mm or ø50mm
  • full-size spare wheel
  • two side supports for stability while standing
  • trailer LED lighting with a 13-pin plug that can be connected to the towing vehicle with 12V as well as 24V onboard voltage
  • loading area of water-resistant anti-slip plywood with 300mm solid side walls
  • battery box (WxHxL) 745x360x365mm for one battery with a capacity of up to 12V/230Ah

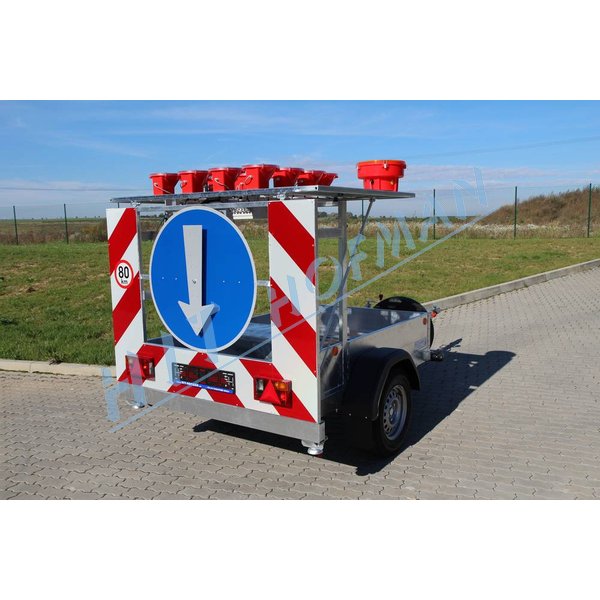

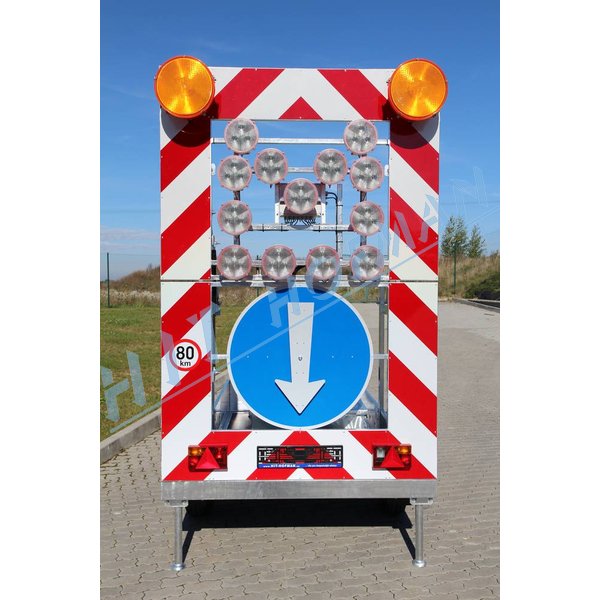

  • two-part retroreflective warning board (WxH) 1700x2500mm, red and white stripes 300mm wide (class RA2) with the blue round traffic sign ø900mm (class RA2), and a manually rotatable arrow
  • the upper board can be lifted by a lifting rod with the support of gas springs while secured against wind pressure in the operating position

Trailer variants

  • traffic signs can be modified according to national standards
  • total weight of the braked trailer can be between 800kg and 1600kg



Technical data

Total weight 1300kg
Trailer weight 490kg
Payload 810kg
Overall lenght 4220mm
Overall width 1730mm
Transport height 2060mm
Operational height 3070mm
Loading area (WxL) 1120x2165mm

Products

Order no. Product name Quantity
1-020-000100 Warning trailer ZSP-5.1_01 pc. Price inquiry
